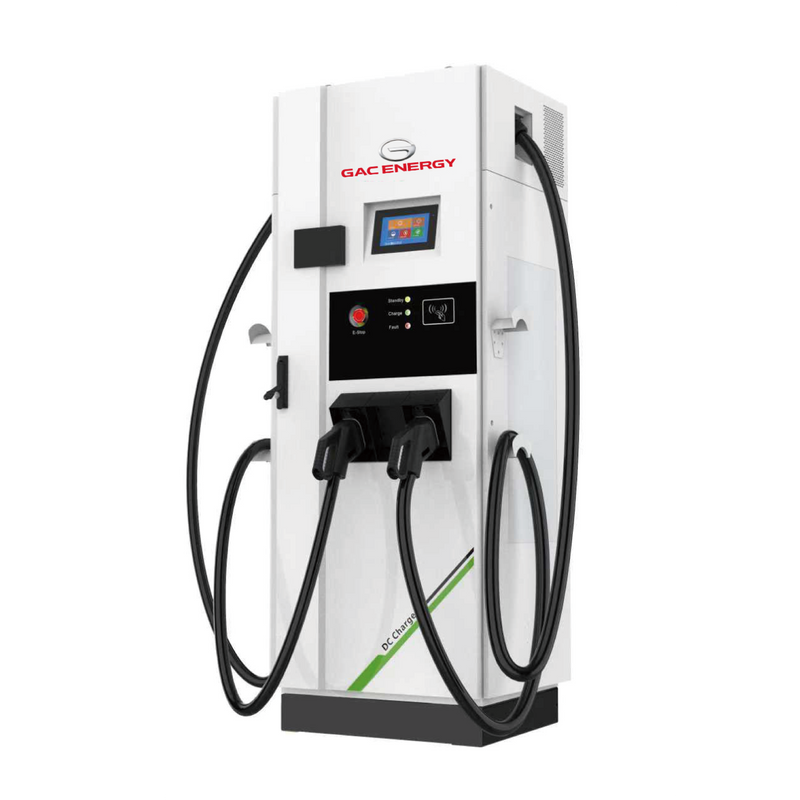

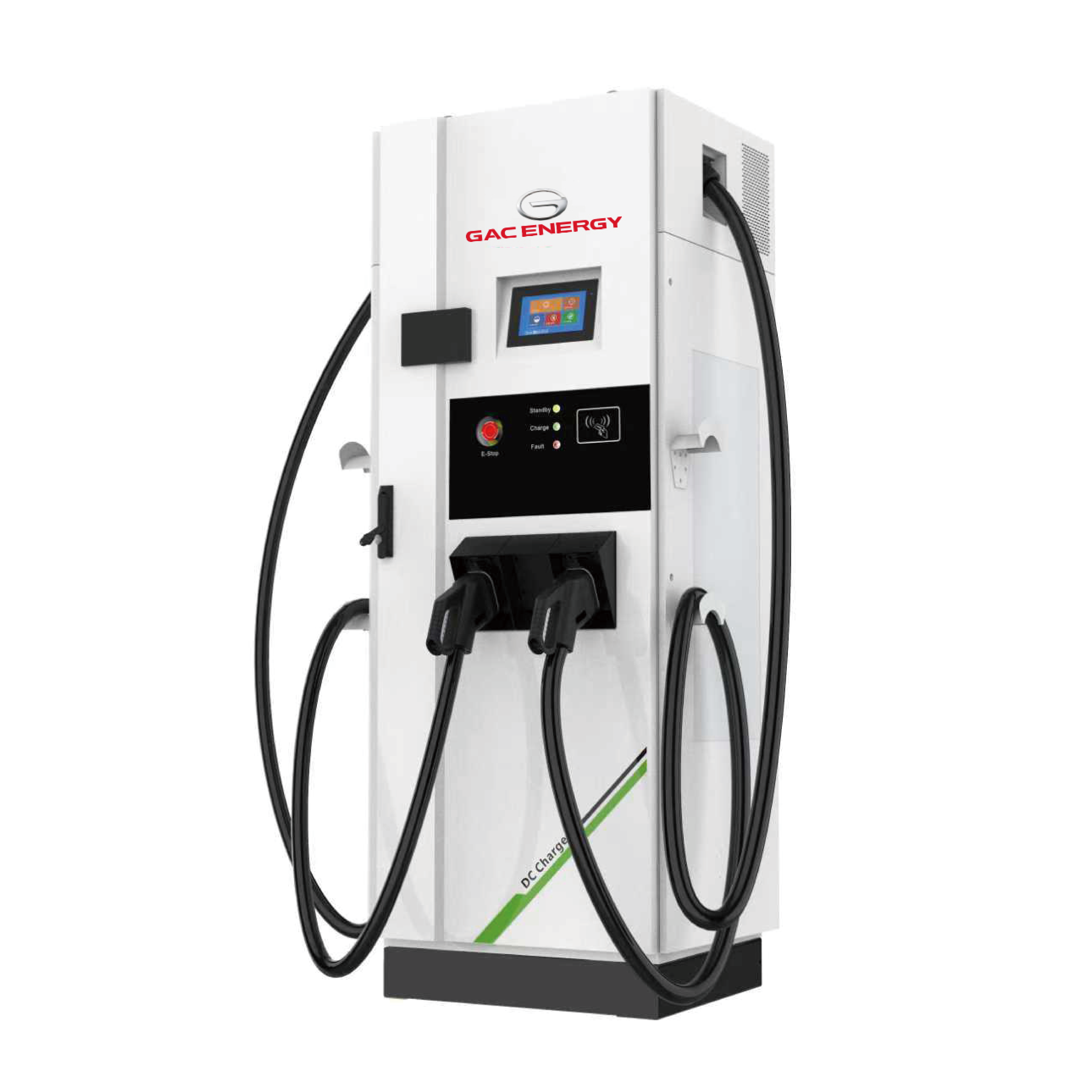

180kW DC Charger (Australia RCM)

The 180kW DC Charger is a versatile, high-efficiency solution designed for public, commercial, and fleet charging applications. Supporting power outputs from 60kW to 180kW, this weather-resistant unit is compatible with global charging standards including CCS2. Featuring a user-friendly 7-inch touchscreen, smart connectivity, and robust protection systems, it delivers reliable, scalable, and cost-efficient charging performance in any environment.

Quantity:
Availability:





Inquire Add to Basket

180kW DC EV Charger

Characteristic

01. High Power and Flexibility

● Configurable DC Charge Power: Offers a range of output options (60kW to 240kW) for customizable charging based on the needs of the EV, delivering fast charging across different power levels.
● Wide Voltage Range: With DC output voltage ranging from 200V to 1000V, it is suitable for a variety of electric vehicles, including both passenger and commercial EVs.
02. Dual Outlet Capability

● Dual Charging Outlets: Allows simultaneous charging of two vehicles, improving charging efficiency for multi-vehicle locations.
03. Robust and Reliable Design

● 3-Phase Power Supply: Operates with 3-phase AC (400V ±10%), providing stable and reliable energy for efficient charging.
● High Durability: Rated for outdoor environments with IP54 and IK10/IK08 protection (impact-resistant and weatherproof), ensuring it can withstand harsh conditions and continue to operate reliably.
● Wide Temperature Range: Designed to function in temperatures from -30°C to +55°C, making it suitable for diverse climates.
04. Advanced Features

● 10-inch Color Touch Screen: User-friendly interface for monitoring charging status, settings, and diagnostics.
● Remote Monitoring & Control: Allows remote management and monitoring of the station, ensuring convenient and efficient operations.
● Multiple Authentication Options: Includes QR code, password, and optional RFID-based activation for secure access.
05. Safety Features

● Comprehensive Protection: Includes overcurrent protection, residual current protection (RCD), over-temperature protection, and surge protection to ensure safety for both users and vehicles.
● Emergency Stop: Equipped with an emergency stop button for immediate disconnection in case of emergency.
06. Sustainability and Grid Efficiency

● Low Harmonic Distortion: Total harmonic distortion is kept under 5%, ensuring efficient energy consumption and minimal impact on the grid.
● OCPP 1.6J and Future-Ready: Supports OCPP 1.6J protocol and is ready for future upgrades to OCPP 2.0, ensuring seamless integration with various management systems.

07. Global Standards

● Wide Operating Altitude: Operates effectively up to 2000m with derating between 2000-4000m, making it suitable for high-altitude areas.
● Global Connectivity: Equipped with 4G and Ethernet communication interfaces for seamless remote access and real-time monitoring.
